Neuron Liquid Level

Neuron system benefits

Robust sensors
Suitable for rough environments
Wireless
Wireless sensor with integrated battery
Long lifetime
Typical 10 years battery life
Quick installation
Wireless, installed and operational in minutes
Collect and deliver data
Data delivery through API and app
Broad offering
More than 50 different sensor types available

Operational specification

Measuring range*:
0-4.5 meter

Resolution:
1 cm

Accuracy:
5 cm

Measuring Frequency**:
Every 30 sec

Report Frequency**:
Reports every 2 min. Or immediately if trigger for critical data transmission is reached, see below

Trigger for Critical Data Transmission**:
1 m

Operating Environment:
Measuring medium: -40 – 125 ºC
Ambient transducer: -40 – 105 ºC
Ambient radio transmitter: -40 – 85 ºC
Relative humidity: 0-100%
Altitude < 2000m above sea level
Pollution degree 4

IP Grade:
Radio transmitter: IP67
Pressure transducer: IP68

Radio Frequency:
863-870 MHz / 902-928 MHz

Battery Type:
Li-SOCl2, 3.6V

Expected Operating Time***:
Up to 10 years

* Adjustable on request
** Depends on measurement frequency, amount of critical data transmissions and ambient temperature

Physical specification

Materials:
Stainless Steel 304 / Polyurethane

Dimensions LxWxH:
Transducer: 150mm x 24mm
Radio transmitter: 50mm x 15mm
Cable length: 5 m – (pressure relief
to pressure sensor)

Regulatory

Certifications:
CE marking
UK CA
FCC
Industry Canada

Directives/Standard:
IEC 61010-1:2010
FCC Part 15C
RED 2014/53/EU Radio
Equipment Regulations 2017

Installation

Place elevated with distance to fixed objects

Keep antenna clear off the metallic surface

Neuron sensors are ready for use out of the box and will start logging data after registering the sensor in the app. Even though Neuron sensors deliver great range and long battery life, following some simple guidelines for mounting of the sensor and gateway can greatly improve signal coverage and lifetime of the sensor.

To ensure optimal antenna performance and signal strength, the sensor should be placed elevated with some distance to fixed objects. Keep in mind that RF-signals are greatly affected by close metallic surfaces.

For sensors with an external antenna, the antenna should be clear off the metallic surface.

For sensors operating in environments with greatly varying temperatures, care should be taken to avoid putting the sensor in unnecessary stress. Very high or low temperatures will affect the battery life and the signal strength of the sensor. While some sensors must be close to the source of heat or cold, other sensors have external probes which allow the sensor to be placed at a distance..

Fastening

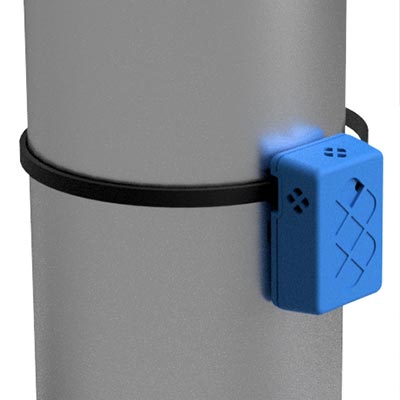

The small, compact blue Neuron sensors are fitted with fastening holes for use with cable ties. The sensors are also delivered with double-sided tape that may be used for fastening of the sensors.

All the black Neuron sensors, like the Neuron IR380 and Neuron Vibration, are fitted with a strong magnet at the back for easy fastening. If there is no magnetic surface, then double-sided tape is a good solution.
